SEBO Male Contact Holder fo...
$14.00
Product details
Current for the power head on an AUTOMATIC X7 or X8 has to cross the swivel neck, the joint that lets the body lean and steer while the nozzle stays flat on the floor. The male contact holder is the moulded carrier that keeps the pins on that side of the joint located, spaced and pointing the right way as the neck articulates. Once it works loose, or the pin seats open up, drive to the brush roll turns intermittent and the fault usually tracks the handle: fine when the machine is upright, dead when it is laid over to reach under a bed.

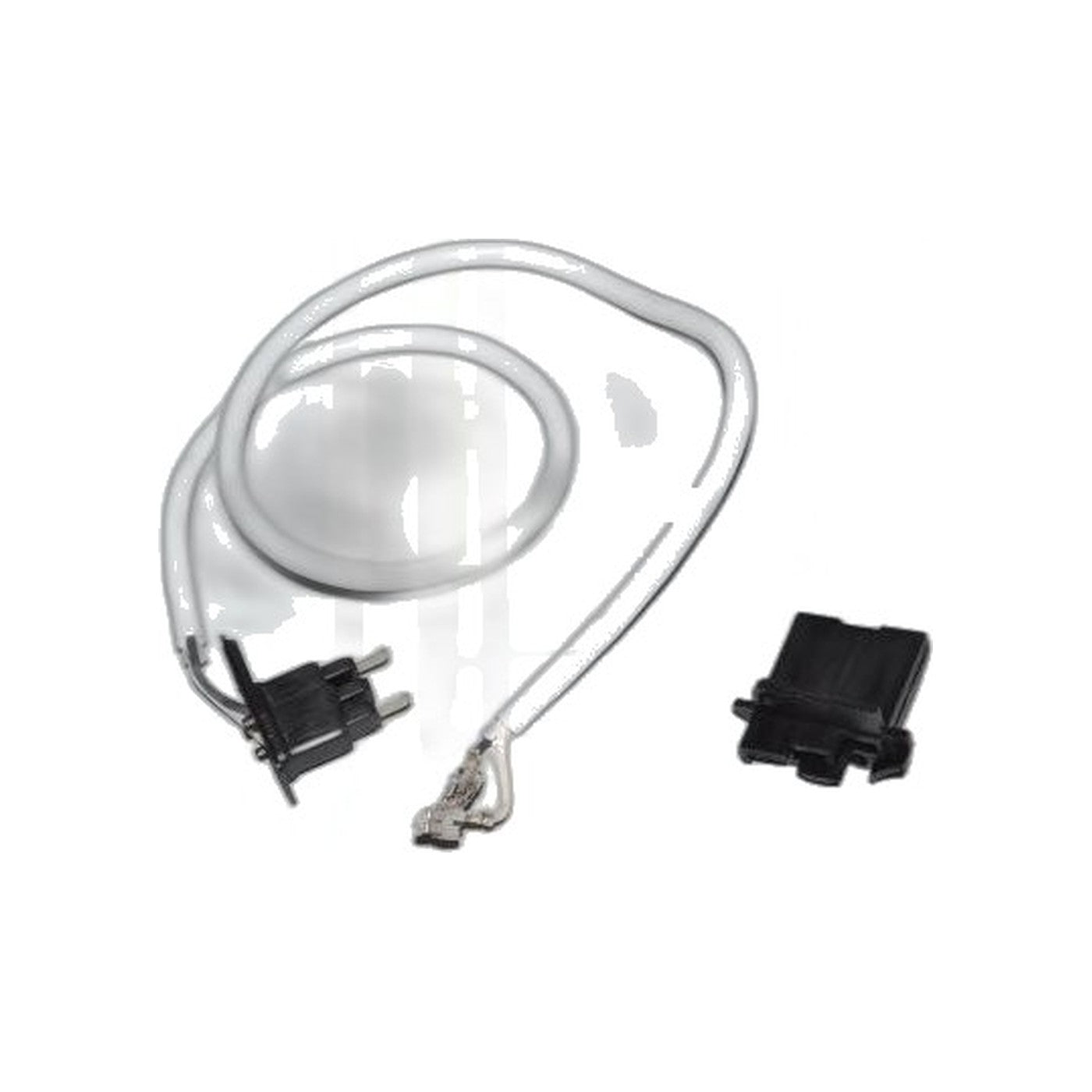

SEBO catalogues 52199ER at position 116 of the AUTOMATIC X7 / X8 exploded diagram, where the entry covers the swivel neck cable set together with its connector support. The parts either side of it on that sheet map the same corner of the machine — the reed switch support for the swivel neck, 52103, sits at position 117, and the X7/X8 power supply and controller board, 5870ER, at position 118. A technician already inside this area chasing power that comes and goes has those two components within reach, and testing them at the same visit avoids opening the neck twice.
Fitment is the SEBO AUTOMATIC X7 Premium, AUTOMATIC X7 Pet and AUTOMATIC X8. Note how each contact is oriented before the old carrier comes out. The pins seat properly one way round only, and a rushed reassembly here reproduces the original symptom with a brand new part fitted.
- Part number 52199ER — male contact holder, swivel neck
- Fits SEBO AUTOMATIC X7 Premium, AUTOMATIC X7 Pet and AUTOMATIC X8
- Diagram position 116, AUTOMATIC X7 / X8 breakdown (swivel neck cable set with connector support)
- Role: carries the power head contacts through the moving neck joint
- Replace when brush roll power cuts in and out with handle angle
- Neighbouring parts on the same sheet: reed switch support 52103 (position 117), controller board 5870ER (position 118)
Anyone searching for a SEBO swivel neck contact holder, an X7 contact carrier or an AUTOMATIC X8 power head wiring repair is looking at this component. Genuine SEBO part supplied by an authorized dealer, shipping in 2–5 business days.
