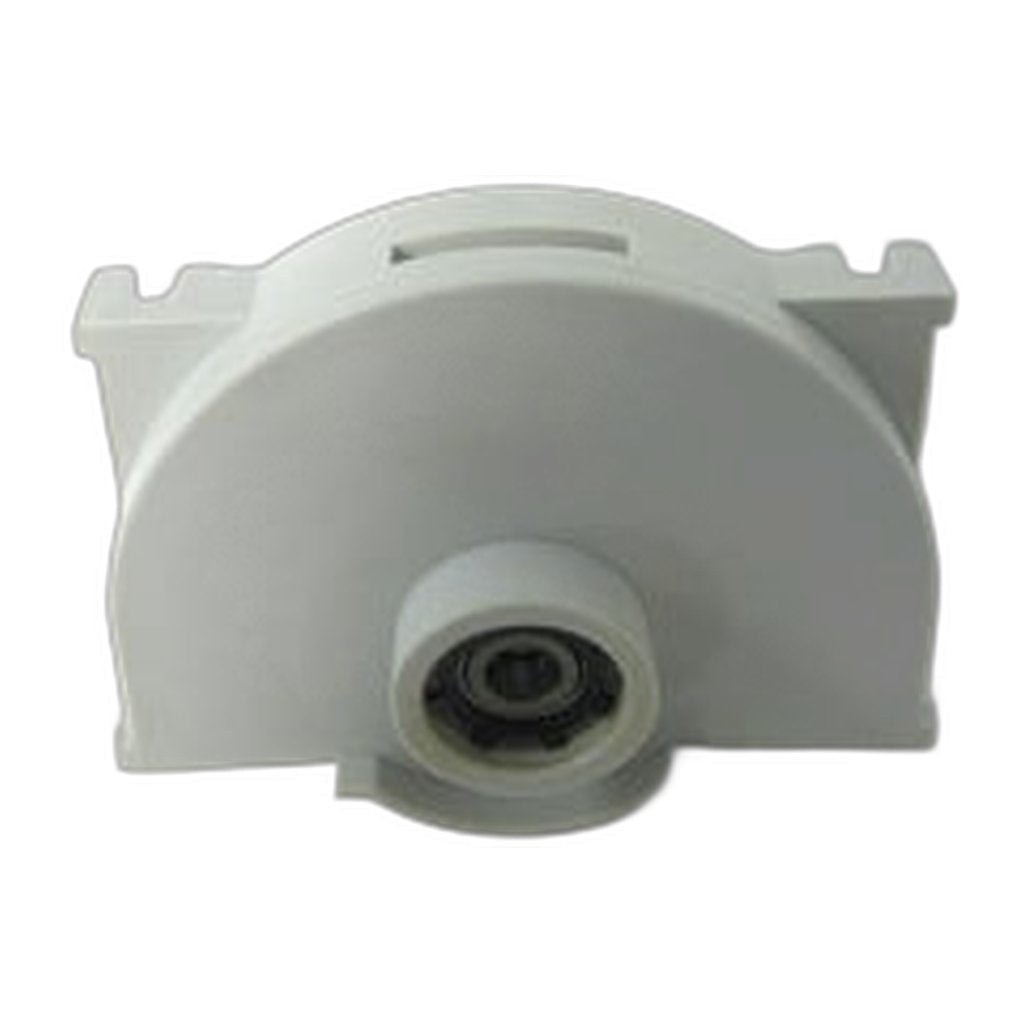

SEBO Left-Hand Brush Roll B...
$32.00
Product details
Light gray and left-hand specific, SEBO 3074HG supports the left-hand end of the brush roll in the Duo brush machine. It is item 69 on the Duo parts diagram, sitting between the brush drive cog 3007 at 68 and the left-hand bearing block assembly 3052HG at 70, and its job is to give the roll a low-friction surface to spin against.
Blocks wear from the inside out, and the fault reports itself long before anything breaks. A grinding note from one end of the head, a roll that visibly wobbles as it turns, or a roll that binds and drags on the motor all point at the block rather than at the brush strip itself. Left alone, the extra play works through into the belt, the pulleys and the drive cog, so a small moulding turns into a much larger repair. Two things are worth confirming before ordering. First the side, because the opposite end of the roll takes bearing block 3010HG under its own number. Second whether the bare block is what is needed at all, since SEBO also lists 3052HG as a complete left-hand bearing block assembly for machines where more than the block has gone. Colour is part of the identity here as well: this is the light gray moulding, matching the other light gray components along that side of the machine.
- Part number: 3074HG
- Fits: the SEBO Duo brush machine
- Side: left hand
- Colour: light gray
- Diagram position: 69 on the SEBO Duo parts diagram
- Opposite side: right-hand bearing block 3010HG
- Complete assembly version: 3052HG
Supplied as genuine SEBO stock by an authorized dealer, shipping in 2-5 business days. This is the listing for a Duo bearing block, a SEBO brush roll bearing or part 3074HG by number.
