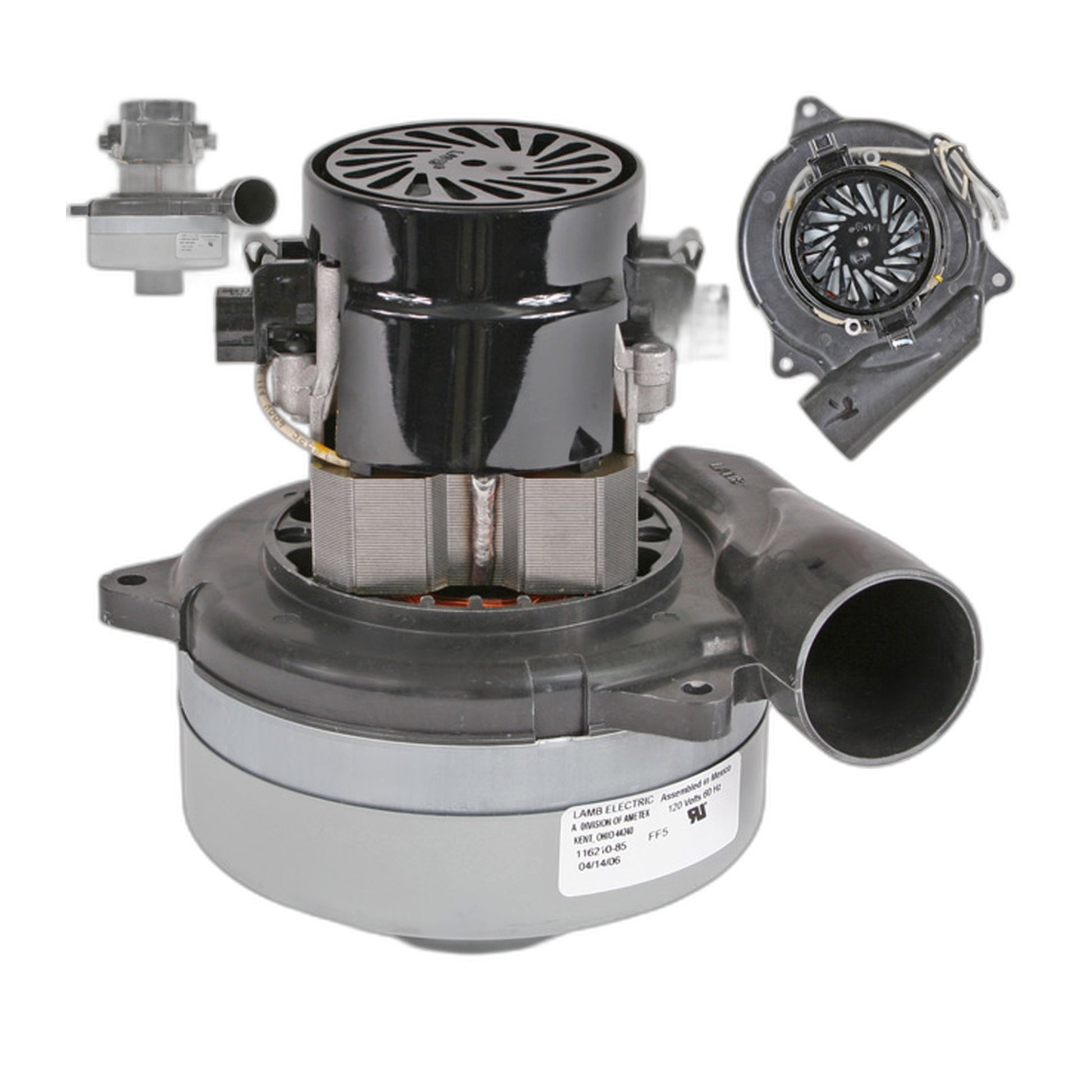

Lamb Ametek 116210-85 Centr...
$129.99
Product details
The 116210-85 carries a flange on its base, a mounting feature published for central vacuum power units that run their motors in series rather than in parallel. Lamb Ametek builds it as a replacement motor, sold here as part 202N, for units originally fitted with the 116210-85 specifically.
Ametek's own model database lists it as a 5.7 inch frame, 120 volt, two-stage motor with tangential output at a 925 watt power level, and records it as the 116210-50 with an inlet tube added. Alongside that sit performance figures of 7.4 amps, 304 air watts, 99.1 CFM and 97.4 inches of sealed suction. Take note of the voltage: several visually similar Lamb motors sold for central vacuums are 220-240 volt parts, and this is not one of them.
The flange is what sets this motor apart from other Lamb Ametek motors of a similar physical size, so match your old motor's part number and base style exactly. A motor without the flange will not seat correctly in a series-motor mounting. Signs it is due for replacement include a breaker that trips on start-up, an electrical smell, sparking near the top of the housing, or suction that drops off and returns unpredictably.
- Part: Lamb Ametek 116210-85, sold as part 202N
- Frame: 5.7 inch, 2 fan stages, tangential output
- Power: 7.4 amps at 110-120 volts, 925 watt level
- Published output: 304 air watts, 99.1 CFM, 97.4 inch sealed suction
- Base: flanged, for series-motor mounting
- Fits: units built around the 116210-85; confirm the base style as well as the number
Verified against: Ametek model data for 116210-85
