Lamb
Lamb Motor 119414-00 - 5.7" 2-Stage Bypass, Ball Bearing, 120V
Lamb Motor 119414-00 - 5.7" 2-Stage Bypass, Ball Bearing, 120V
SKU:119414-00
176 in stock
Couldn't load pickup availability

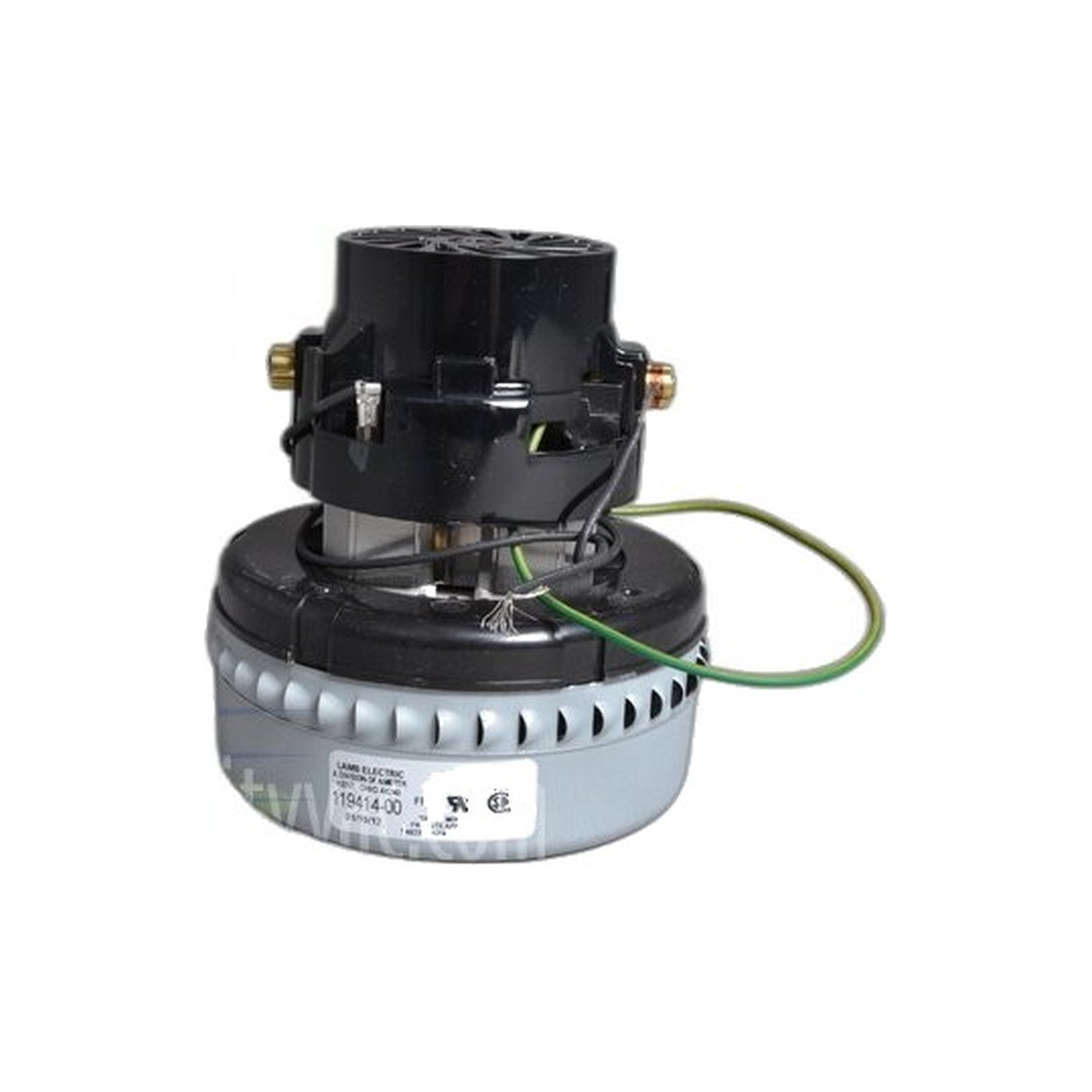

The Ametek Lamb 119414-00 motor is a 5.7-inch, 2-stage peripheral bypass unit running on 120V at 8.0 amps, also sold as part #Q6600-020T-01. It produces 94 CFM and 274 maximum air watts at up to 21,425 RPM, rated at 1.6 horsepower on dual ball bearings with a roughly 500-hour average life and UL/CSA recognition.
When a commercial bypass motor loses suction or grows noisy, worn bearings or brushes are the usual cause. A matched replacement returns the airflow and pressure the equipment was engineered to deliver.
- Function: 2-stage peripheral bypass, 120V, dual ball bearings
- Specs: 94 CFM, 274 max air watts, 21,425 RPM, 1.6 HP
- Construction: Steel skeleton frame with lug mounting
- Fits: Car wash systems, utility vacuums, centralized vacuum networks
Confirm the diameter, voltage, and mounting against your current motor before ordering. Professional installation is recommended for these commercial units.
