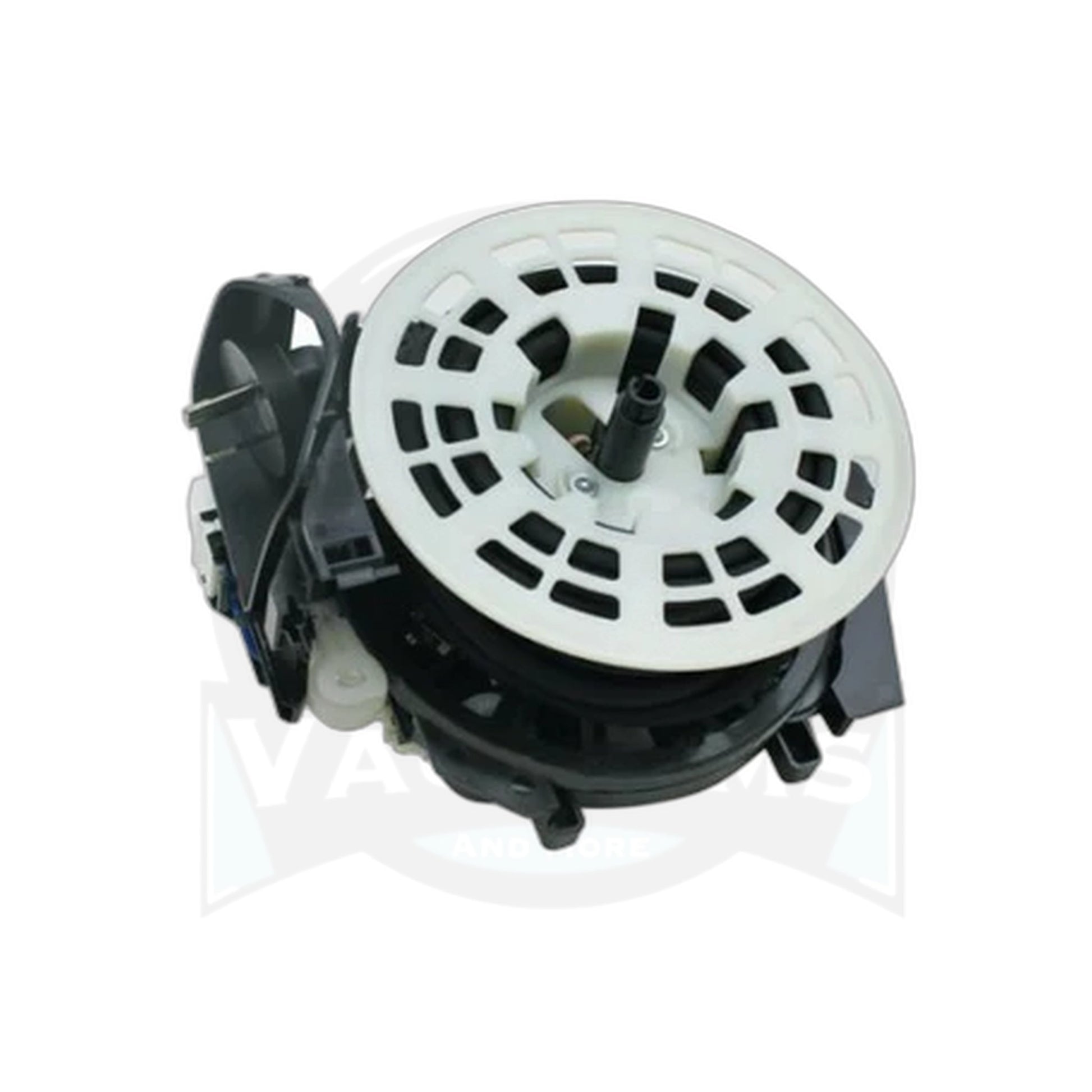

Miele Cable Reel Assembly for Compact C1 and S4000 Series

A cord that won't retract — or won't pay out — usually means the rewind spring or contacts inside the cable reel have failed. Genuine Miele part 9925274 is the complete cord reel assembly for Compact C1 and S4000 series canisters, supplied with the 5.5 m (18 ft) power cord already wound and ready to install. No splicing, no transferring the old cord: the whole module swaps in as one piece.

Verified compatibility:

• Miele Compact C1 models on the SCAE0 chassis (Pure Suction, Turbo Team, HomeCare)
• Miele S4000 canisters including S4210 and S4212
• S4 named models: Antares, Neptune, Polaris, Capella, Carina, Sirius, Luna, Eclipse, Orion

This assembly supersedes earlier part numbers 06259141, 06259143 and 06259146, so it is the correct order for any of those references on an older parts diagram. It is the USA-spec reel (sometimes catalogued as 09925274 or dealer SKU 590362) and weighs roughly 0.8 kg boxed.

Cord reels carry full mains current, which is exactly where you want a factory part rather than a generic rewind: the genuine reel uses Miele's slip-ring contacts and strain relief, sized for the canister's 1,200 W motor. evacuumsandmore.com is an authorized Miele dealer — this reel comes straight from Miele's parts network with the fit guaranteed on every model above.
