SEBO ET-C Power Head schematics and parts
Archived SEBO schematic for an older model. Use the original drawing and linked parts list to identify a replacement. Unlinked part numbers need confirmation. The original drawing also shows references 39–46 without a corresponding parts key; contact us to identify those components.

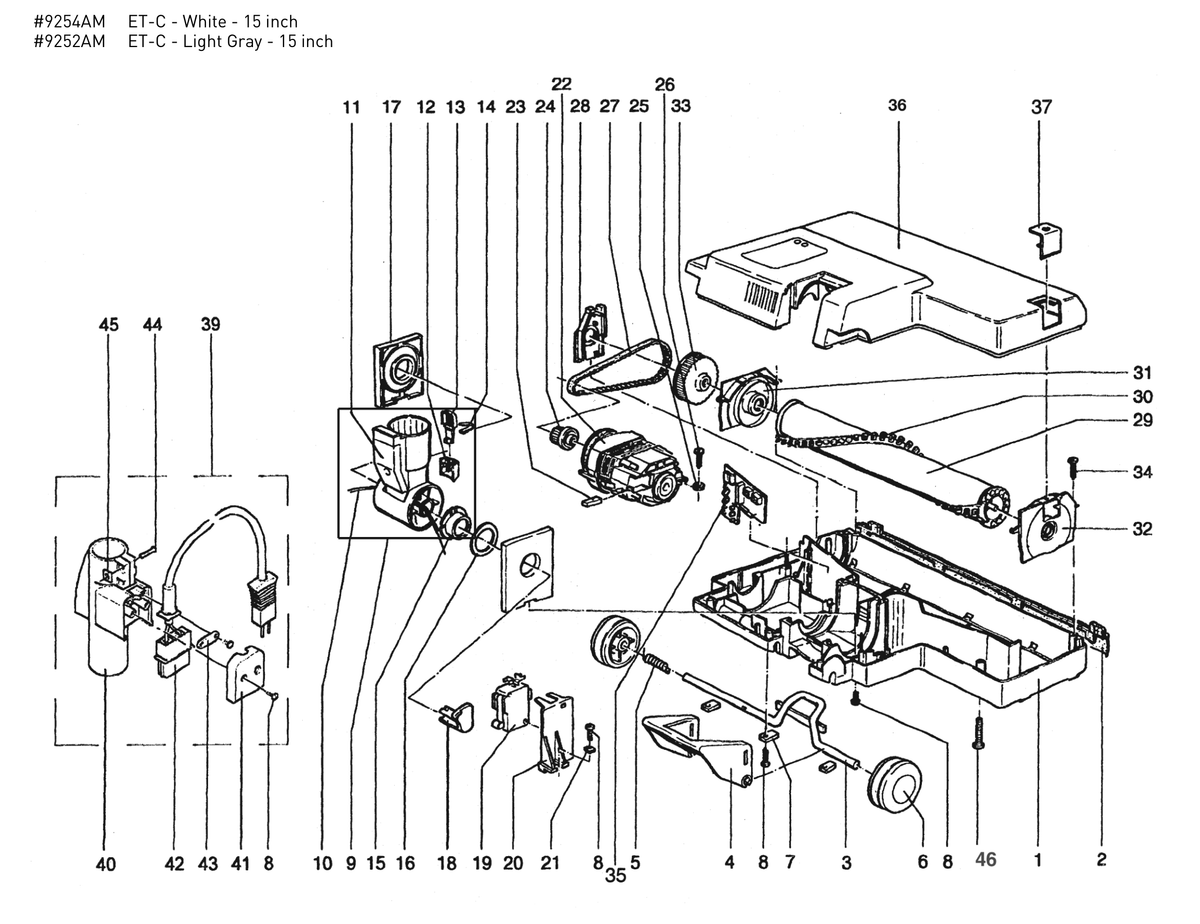

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO ET-C Power Head parts on this page (31)
- SEBO Axle for ET-C Power Heads — SKU 2009
- SEBO Bearing Block Left Hand - 370 & ET-C — SKU 2091
- SEBO Right-Hand Brush Roll Bearing Block for ET-C and ELECTRONIC 370 — SKU 2047
- SEBO Drive Belt for ET-C Power Heads and ELECTRONIC 370 — SKU 2049
- SEBO Swivel Neck Release Button with Leaf Spring — Gray Black — SKU 1737GS
- SEBO Release Button Cap for ET-C Power Heads — Light Gray — SKU 1738HG
- SEBO Male Contact Holder for the ET-C Power Head — SKU 6146UL
- SEBO Chassis and Metal Bottom Plate Set for ET-C Power Heads - Black — SKU 2002SW
- SEBO Brush Strip Cover with Screw for ET-C Power Heads — SKU 2058
- SEBO Dark Gray Swivel Neck Cover for the ET-C Power Head — SKU 6137DG
- SEBO Foot Pedal for ET-C Power Heads - Dark Gray — SKU 2011DG
- SEBO Inner Brush Roller Bearing for the ELECTRONIC 370 and ET-C Power Heads — SKU 2467
- SEBO Rear Axle Clamp — Single, for AUTOMATIC X, ESSENTIAL G, 300/350, 370 and ET-C — SKU 2014
- SEBO Switch Lever for ET-C Power Heads — SKU 2452
- SEBO Brush Roller with Strip for the Electronic 370 and ET-C Power Heads — SKU 2030ER
- SEBO Micro Switch Support Bracket for ET-C Power Heads — SKU 2453
- SEBO Axle Spring for AUTOMATIC X and ESSENTIAL G Series, ELECTRONIC 370 and ET-C — SKU 2010
- SEBO Switch Lever Leaf Spring for AIRBELT K2, K3 and ET-C Power Heads — SKU 1739
- SEBO Brush Motor with Pulley for ET-C and ELECTRONIC 370 — 120V, 150W — SKU 2241UE
- SEBO Ametek Carbon Brush Set for the 2241UE Brush Motor — ELECTRONIC 370 and ET-C — SKU 05095S
- SEBO Motor Pulley for the Electronic 370 and ET-C Power Heads — SKU 2025
- SEBO Motor Mounting for ET-C Power Heads — SKU 2566
- SEBO 120V P.C. Board for ET-C Power Heads — SKU 2584ER
- SEBO Brush Roller Pulley for the ELECTRONIC 370 and ET-C Power Heads — SKU 2458
- SEBO Bearing Plate for ET-C Power Heads — Dark Gray — SKU 2079DG
- SEBO Micro Safety Switch for the ELECTRONIC 370 and ET-C Power Head — SKU 0531/1
- SEBO Swivel Neck Support for ET-C Power Heads — SKU 2466
- SEBO Dark Gray Swivel Neck Assembly for the ET-C Power Head — SKU 6145DG
- SEBO 14 in. Brush Roller Strip for 350 MECHANICAL, 370 Series and ET-C Power Heads — SKU 2046
- SEBO ET-C1 Washer for ELECTRONIC 370 and ET-C Power Heads — Single — SKU 0155
- SEBO Bumper for ET-C Power Heads - Dark Gray — SKU 2007DG
