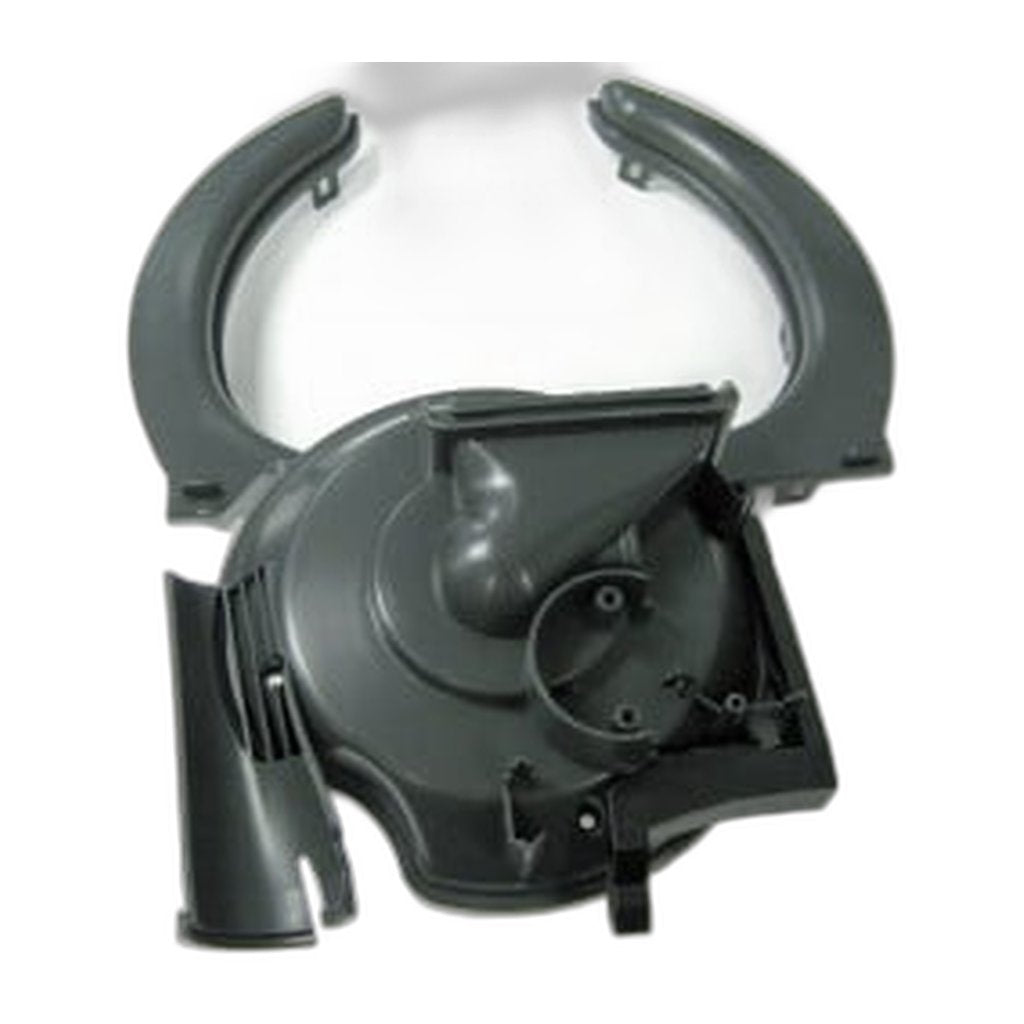

SEBO Complete Motor Cover w...
$39.00
Product details
Order 8085ER and four numbers off the AIRBELT D drawing arrive as a single item. This is the motor cover supplied complete for the AIRBELT D1 Turbo and the D4 Premium, carrying spring 8098ER from item 12, lever 8036ER with its screw and washer from item 13, and inlet seal 8009 from item 11 - the cover itself being item 14.
Those four positions are not a random grouping. The cover caps the motor chamber, closes the inlet route feeding the motor at item 9, and carries the rewind linkage that releases the cord reel at item 10. The functions decay in step, too: the moulding splits around a screw boss, the inlet seal goes hard and lets air slip past the motor instead of through it, and the rewind spring softens until the lever stops returning. A single module deals with all three in one strip-down rather than three separate trips inside the machine.
The individual pieces stay available where only one has failed - 8009 for the inlet seal, 8098ER for the spring, 8036ER for the lever and its hardware. The complete cover is the choice once the moulding itself is damaged, since the seal and the linkage both locate off it.
- Order code: 8085ER
- Machines: AIRBELT D1 Turbo, AIRBELT D4 Premium
- Numbers built into it: 8098ER spring, 8009 inlet seal, 8036ER lever with screw and washer
- Drawing reference: AIRBELT D sheet, item 14
- Closes over: vacuum motor 8048ER at item 9, cord rewind unit 665613E at item 10
- Change it when: the cover has cracked at a screw boss, the inlet seal has hardened, or the lever no longer returns
Work with the plug out; the module locates where the old one was, and nothing worn transfers across. Shoppers find it as a SEBO motor cover complete, an AIRBELT D cord rewind assembly, or a D4 Premium motor cover with seal. Genuine SEBO module from an authorized dealership. Out the door in 2-5 business days.
