Trovac Retraflex 45-Degree ...
$11.00
Product details

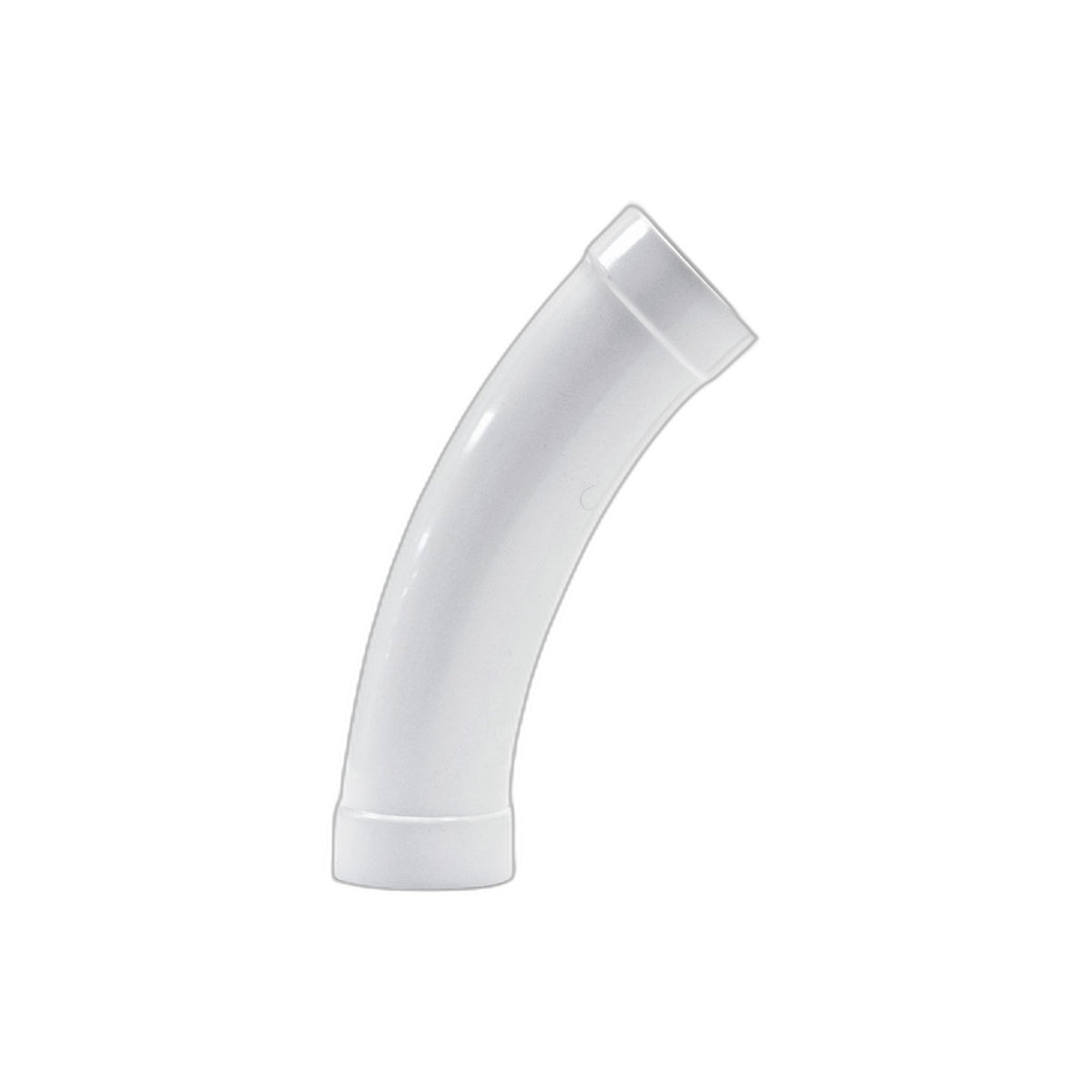

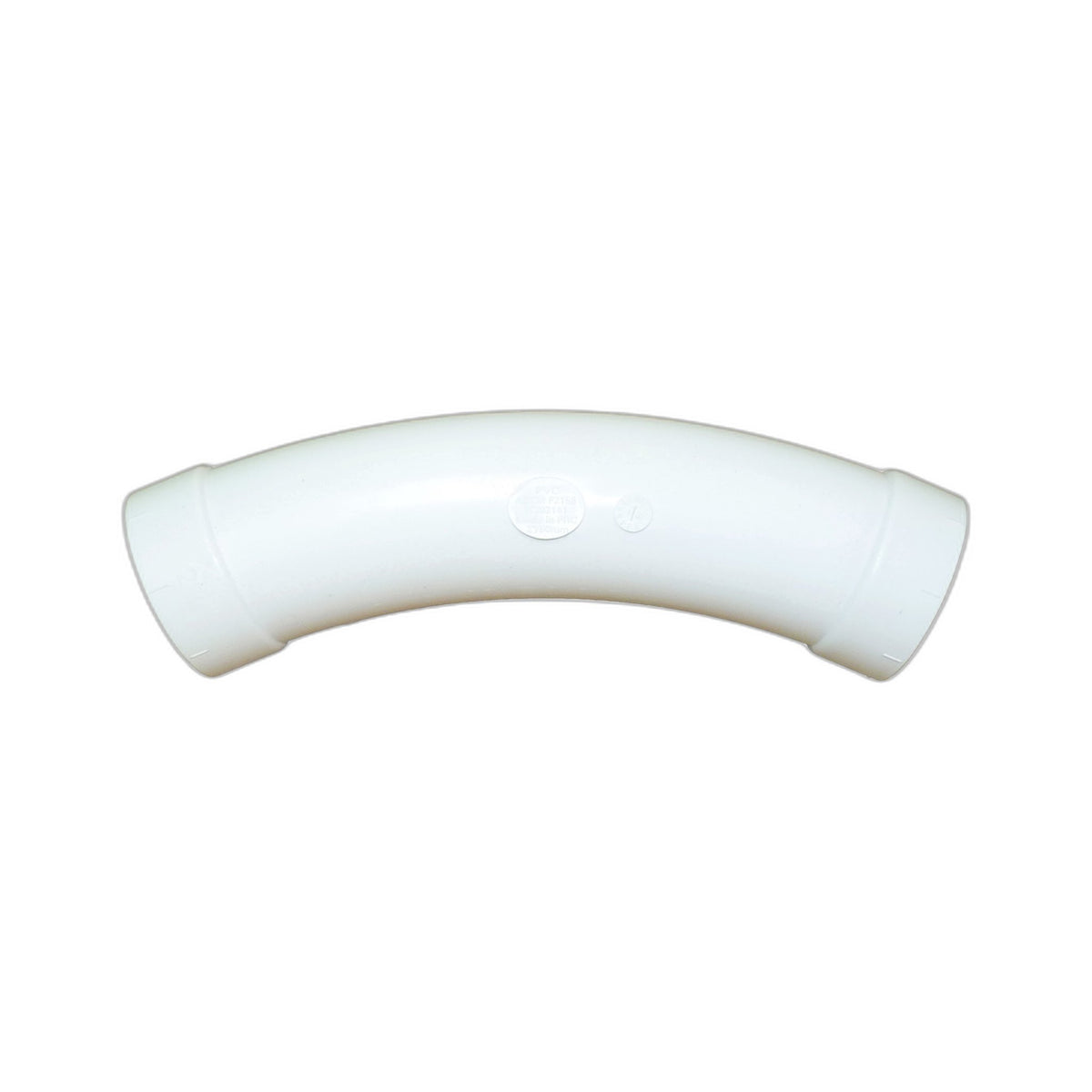

A Retraflex retractable-hose system pulls the hose back through the pipe after each use, so its fittings need a wider turn than fixed-hose central vacuum tubing. Part IT202141 supplies that wider turn at 45 degrees, letting the hose pass through the bend without binding.
- Angle: 45 degrees, very long radius
- System: Retraflex retractable hose
- Material: PVC
Use this elbow only on Retraflex runs; the very-long-radius shape is sized for hose clearance and is not needed on a conventional fixed-hose central vacuum line. Keep the rest of the run on matching very-long-radius Retraflex fittings so the hose travels smoothly at every turn.
Because the hose stores inside the pipe rather than on a rack, a Retraflex network is planned as a complete run of matching very-long-radius fittings from the inlet back to the power unit, rather than assembled piecemeal the way a standard hose-and-rack system often is. Mixing in a narrower-radius elbow anywhere along that path reintroduces the risk of a snag.
Reference part IT202141 when ordering a 45-degree turn for a Retraflex line, and confirm any other elbows on the same run share the same very-long-radius shape before you check out. Verified against: Trovac catalogue listing for the Retraflex very-long-radius 45-degree elbow
