SEBO Seal Bearing for AUTOM...
$8.00
Product details

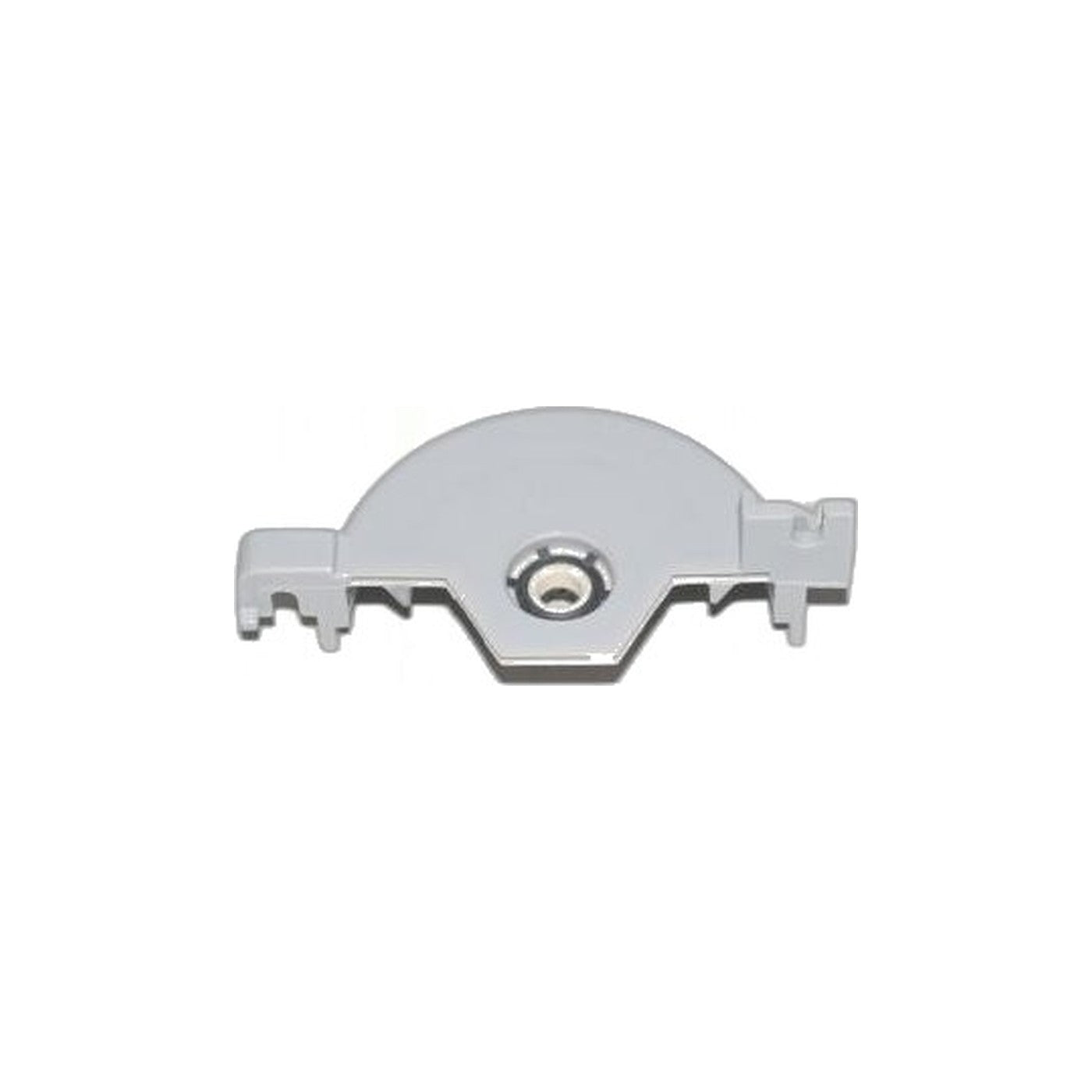

Carpet fibre, grit and fine dust are exactly what a brush roller bearing cannot tolerate, and the seal at the end of the roller is the barrier that keeps them on the outside. Part 5244HG is the SEBO seal bearing that does that job on the AUTOMATIC X2 and the AUTOMATIC X5.
Once a seal hardens, distorts or splits, the ingress starts immediately and the noise follows within a season: a dry rumble that rises with speed, then a howl, then a roller that drags and cooks belts. Because the symptom arrives gradually, most owners tune it out until something louder happens. SEBO places this part at position 160 of the AUTOMATIC X4 / X5 exploded diagram, listed simply as the seal bearing, immediately below the brush cover at position 161 — the part supplied for these machines as 5249DB1 in dark blue. That is the practical hint: the seal is buried under components you have to remove for a belt change or a bearing job anyway, so renewing it during any brush roll service saves stripping the head twice.
Fitment is the SEBO AUTOMATIC X2 and AUTOMATIC X5. If the bearing itself is already noisy, expect to change bearing and seal together — a fresh seal will not quieten a bearing that has been running contaminated.
- Part number 5244HG — seal bearing
- Fits the SEBO AUTOMATIC X2 and AUTOMATIC X5
- Diagram position 160, AUTOMATIC X4 / X5 breakdown
- Job: keeps dust, grit and carpet fibre out of the brush roller bearing seat
- Replace whenever the roller is out for a belt, bearing or noise complaint
- Sits alongside brush cover 5249DB1 at position 161 of the same sheet
Shoppers reach this listing looking for a SEBO brush roll bearing seal, an AUTOMATIC X5 roller seal, or the small seal that sits behind the brush cover on an X2 power head. Genuine SEBO seal bearing for X2 and X5 brush roll repairs, from an authorized dealer. Ships in 2–5 business days.
