Trovac Vaculine PVC 90-Degr...
$6.99
Product details

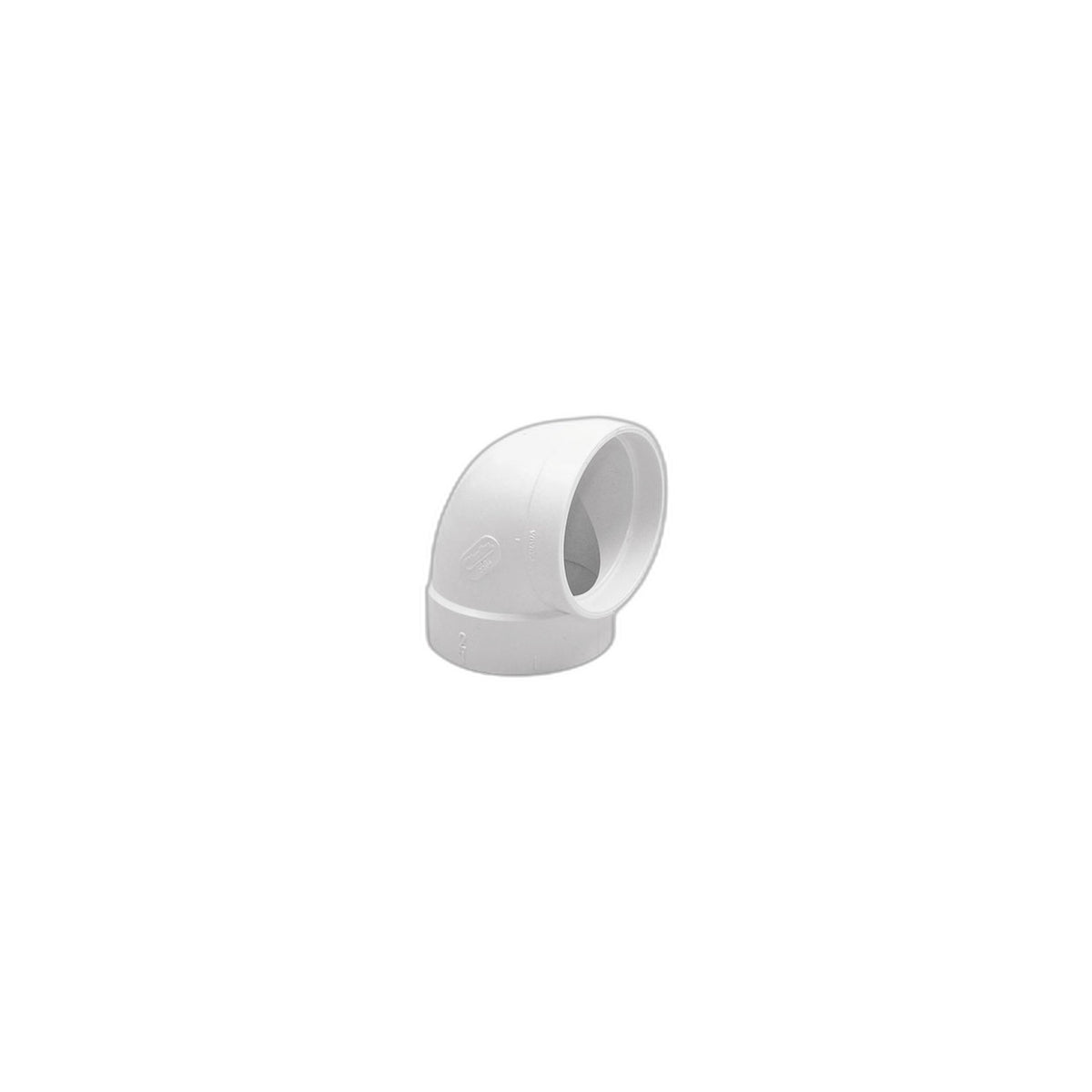

Part TF5504BV makes a compact 90-degree turn in a central vacuum PVC run using a short radius, which takes up less depth than a medium or long-radius elbow at the same angle. One end is a spigot that slides directly into the next fitting.
- Angle: 90 degrees, short radius
- Ends: one spigot (male), one socket
- Material: PVC
A short-radius elbow suits a spot where the space behind a wall or fixture is too tight for a medium or long sweep, though the tighter curve does add more resistance to airflow than a wider bend at the same angle, so use it only where clearance actually requires it. The spigot end lets it connect straight onto a tee, wye or coupling without an added piece.
Dry-fit the spigot end into the mating fitting before cementing, since PVC solvent weld sets almost immediately once the pieces are pushed together. Keep a short-radius elbow on hand alongside medium and long-radius options, since which one fits depends on the depth available at that particular turn.
Confirm the pipe diameter matches your existing system, then order part TF5504BV for a tight 90-degree turn where clearance behind the wall won't allow anything wider. Verified against: Trovac's Vaculine listing for the short-radius elbow with a spigot end
